The series
The laboratory microscopes of the HPM 5000 and HPM 6000 series can hardly be desired!
They should be manufactured in Europe, just have the main characteristics of a laboratory microscope.
They have a 5-position turret equipped with plane-DIN achromatic lenses with magnifications of 4x, 10x, 40, 100x (oil), which have the 40x and the 100x even mounted. With the help of 10x/22mm widefield eyepiece, so enlargements are in the range 40x - 1000x possible with the help of optional accessories, even at up to 1500x can be expanded.
The devices are equipped with a two-lens, centerable, height-adjustable Abbe condenser with double NA (0.22 / 1.22) and fitted iris diaphragm and filter holder.
The object table with an integrated mechanical stage is 175mm long, 145mm wide. The focusing is very deep with coaxial coarse and fine focusing diopter easily possible (+ / - 5). And adjustable eye relief (51 - 78 mm) make it look comfortable and enjoyable.
The HPM 5000 dark-field microscope for vital blood test
These devices are based on the HPM 5000, but with an extremely powerful LED lighting, a special darkfield and a plan achromatic lens 100xÖl with built-in iris diaphragm.
For these microscopes has always been a separate light source with 100-150 W was required. We put here the new LED technology and can present them as a high quality, but much cheaper model.

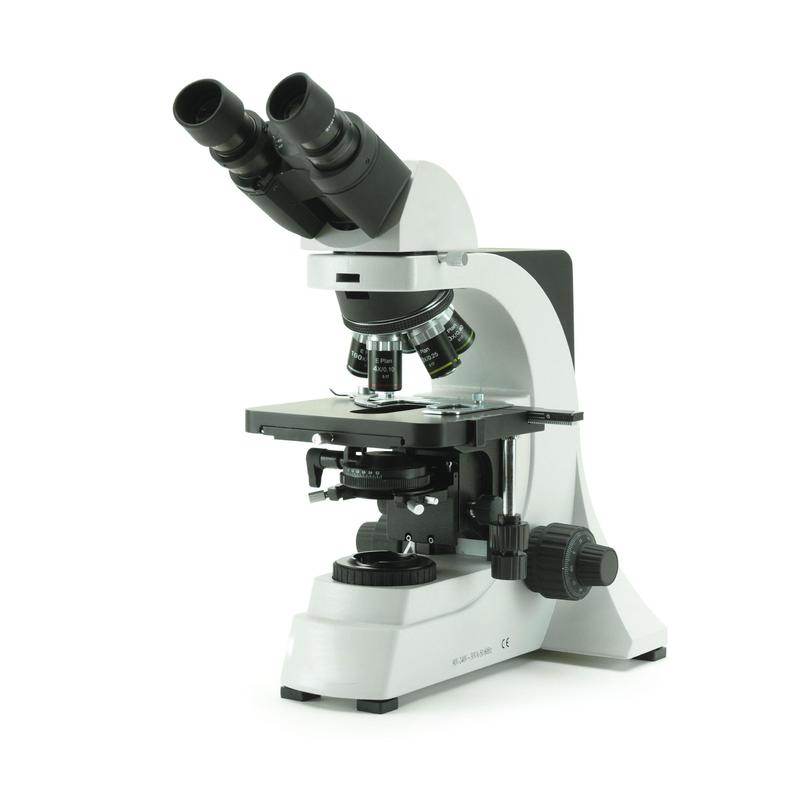

The insight of the HPM 5500 is binocular. It is a 45 ° inclined, which is rotatable by 360 °.
Similar to! (Lenses are different)
