Microscópio B-190TBPL, cam 3.1MP, tablet, 10.1 inch, DIN, N-plan, 40-1000xO/W, X-LED

B-190TBPL

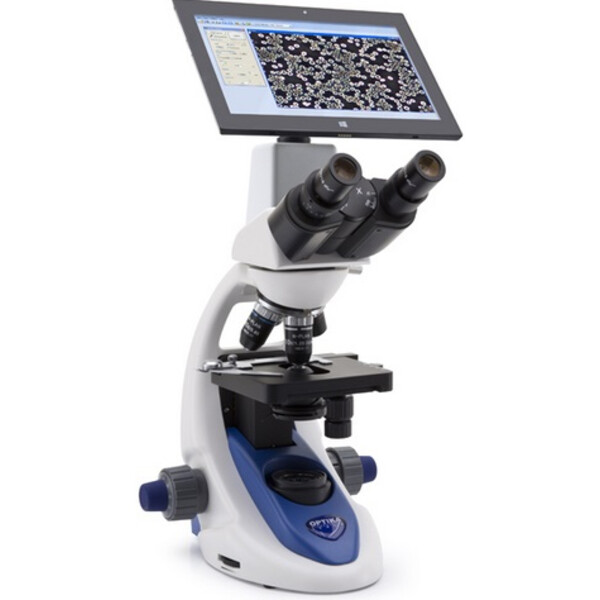

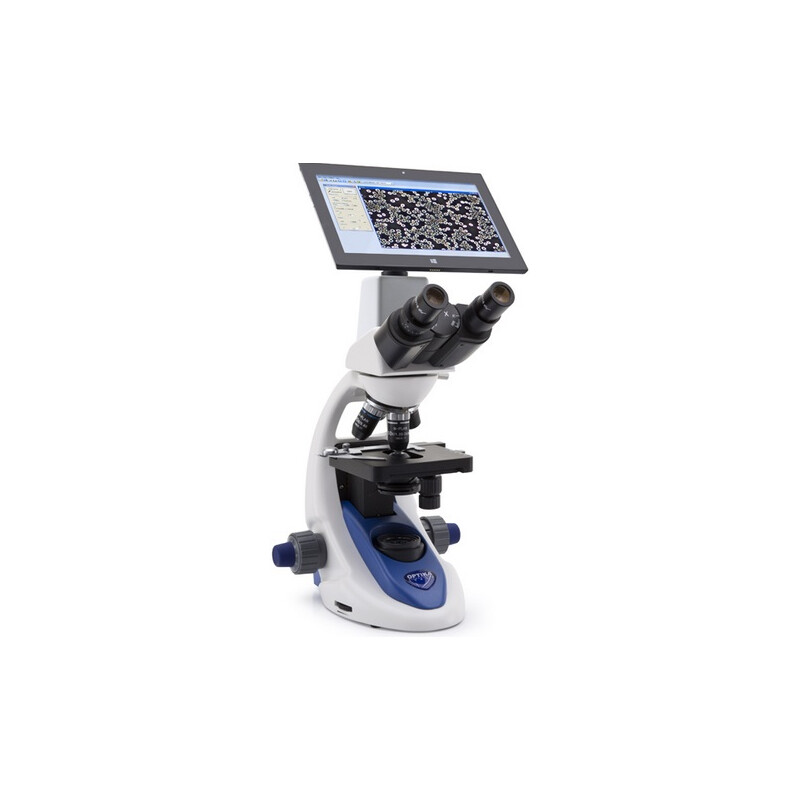

Digital binocular microscope ideal for teachers and secondary schools, with four N-PLAN objectives (1000x), FN 18 high eyepoint, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 3 W X-LED2 illumination. The 3.1 MP CMOS camera ensures excellent colour reproduction and is connected to a Windows tablet PC with vivid color graphic display for unparalleled comfort and performance. The tablet represents a 2-in-1 solution as it can be disconnected and used as a real PC, being Windows-based, with powerful Intel processor and large touch screen of 10.1” for fast, responsive and smooth control

Specification

Head: Binocular with integrated 3.1 MP camera, 30° inclined; 360° rotating. Detachable Windows tablet PC included, rotating and tilting.

Dioptric adjustment: Left eyepiece.

Eyepieces: WF10x/18 mm, high eyepoint, secured by screw.

Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.

Objectives:- N-PLAN objective 4x/0.10

- N-PLAN objective 10x/0.25

- N-PLAN objective 40x/0.65

- N-PLAN objective 100x/1.25 (Oil/Water).

All with anti-fungus treatment.

Specimen stage: Mechanical stage, 125x115 mm, 70x30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.

Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.

Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.

Illumination: X-LED² with white 3 W LED and brightness control.

Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply

The latest OPTIKA digital microscopeswith Windows tablet PC open new microscopy horizons, combining high-end optics with innovative digital technology for microscopic imaging. B-190TB includes a 3.1 MP camera with a 10.1” Windows tablet.View, capture, analyze and share your images with simplicity and reliability

Specifications

Operating system: Windows 10 (64Bit)

CPU: Gemini-Lake, N4100

CPU speed: 1.10 GHz

Graphic card: Intel® HD Graphics 600

RAM: Ram 6 GB LPDDR3

Display size: LED 10.1” IPS Multi Touch Screen

Display resolution: 1920x1200

Storage: Hdd 128 GB

Network: WiFi (2.4G / 5G) - Bluetooth 5.0

Input ports: USB-C (1 USB2.0 for battery charge, 1 USB3.0) - Micro SD card reader

Output ports: Microphone - Headphone - Micro HDMI

Battery Type: Lithium-ion

Battery capacity: 6500 mAh

Power consumption: 24.05WPower supply12V 2A EU

Dimensions: (mm)261 x 167 X 9Weight (Kg)0.53

Language: Multilanguage

Weight:530 g

Tablet accessories included: OTG cable (micro USB-C to USB-A)USB cable USB-B to USB-A (0.5m)Touch pen

Camera Specification

Digital camera resolution: 3.14 MPixel

Signal output: USB 2.0

Sensor Size: 1/2.5”

Sensor technology: CMOS

Image format: 4\3

Full Image size: 2 048 x 1536

Pixel size: 2.2 x 2.2 micron

Frame rate full resolution: 5 frames\sec

Frame rate other resolutions: 8 FPS (1280x1024) - 30FPS (640x480)

Automatic White Balance: Auto - Man

Automatic Gain Control: Auto - Man

Automatic Back light control: Auto - Man

Exposure control: Auto - Man
