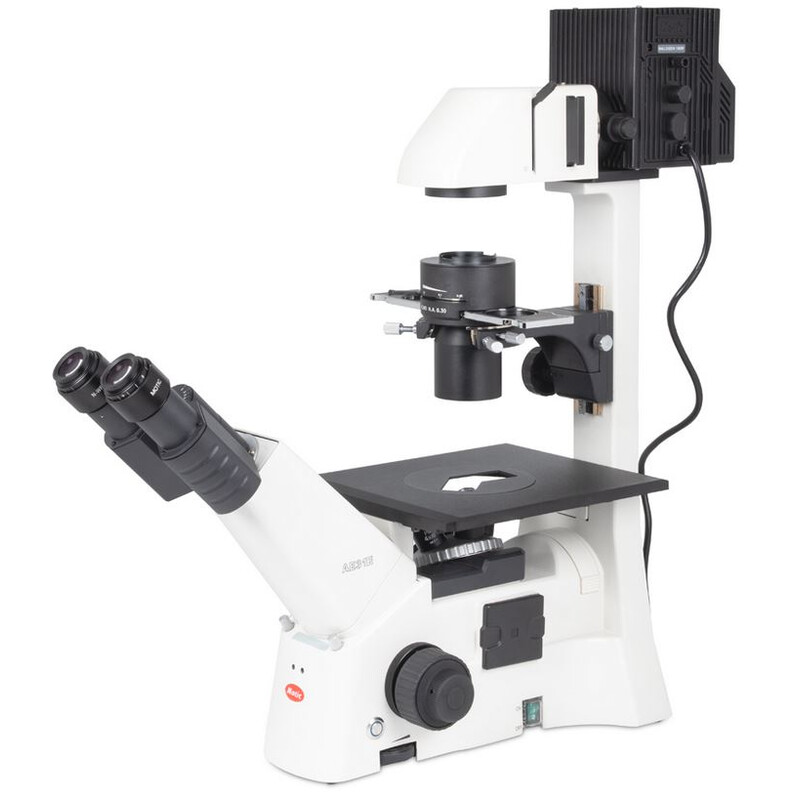

AE31E BINOCULAR (100W)
- Observation tube Binocular head, Siedentopf type, 360º swiveling
- Optical system: Colour Corrected Infinity Optical System (CCIS®)
- Inclination 45º inclined
- Interpupillary distance 48-75mm
- Diopter adjustment On both eyepieces, +/- 5 diopter
- Eyepieces Widefield WF10X/22mm with diopter adjustment
- Nosepiece Left side facing quintuple
- Objective classification CCIS® Plan Achromatic
- Objectives
4X/0.10, WD 12.6mm
10X/0.25 WD 4.1mm phase
20X/0.30 WD 4.7mm, LWD, phase
40X/0.50 WD 3.0mm, LWD phase
- Objective mounting thread W 4/5"x1/36" (RMS standard)
- Stand type Inverted
- Stage Plain stage with metal and glass stage inserts
- Stage size 200x239mm
- Condenser Focusable and centerable ELWD condenser N.A. 0.30 (WD 72mm)
- Diaphragm Iris diaphragm
- Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
- Fine focus precision 2µm
- Focusing stroke 10mm
- Free working distance Working distance without condenser 231mm
- Transmitted illumination Koehler Quartz halogen 12V/100W with intensity control
- Illumination features Auto-OFF and Light Memory function
- Transformer External
- Power supply 100-240V (CE)
- Accessories included
- Dust cover
- power cord
- Hex key
- blue, green interference and ground glass filters
- phase ring Ph1
- centering telescope
- centering keys
- spare fuse
- Dimensions LxWxH 629x200x595mm
- Net weight 13.2kg
