Mais sobre a série AE2000...
Infelizmente, a descrição deste produto ainda não está em Portuguê portanto, você encontrará uma descrição em Inglês do produto aqui.

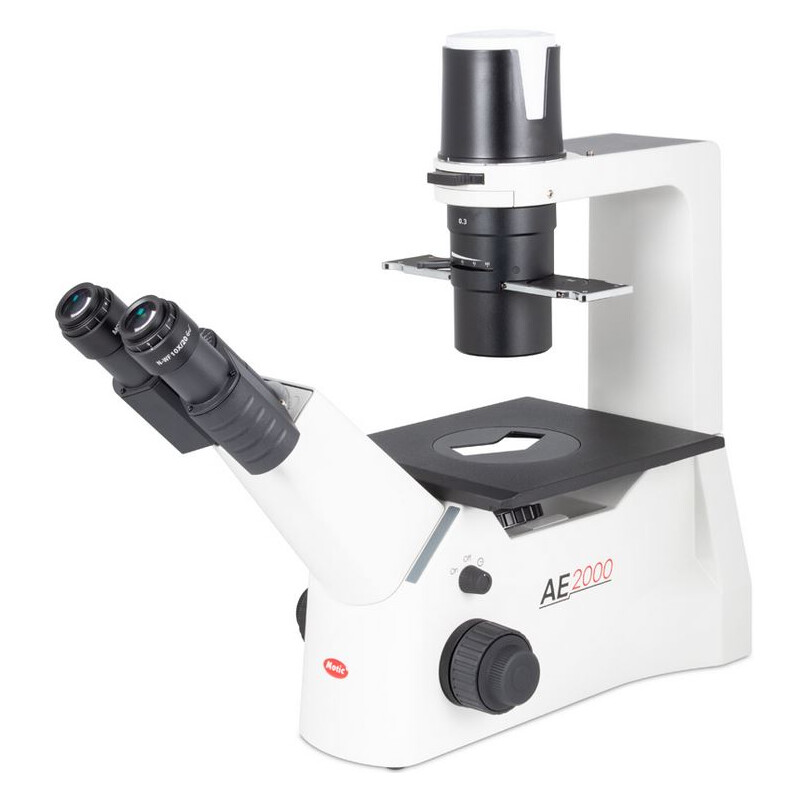

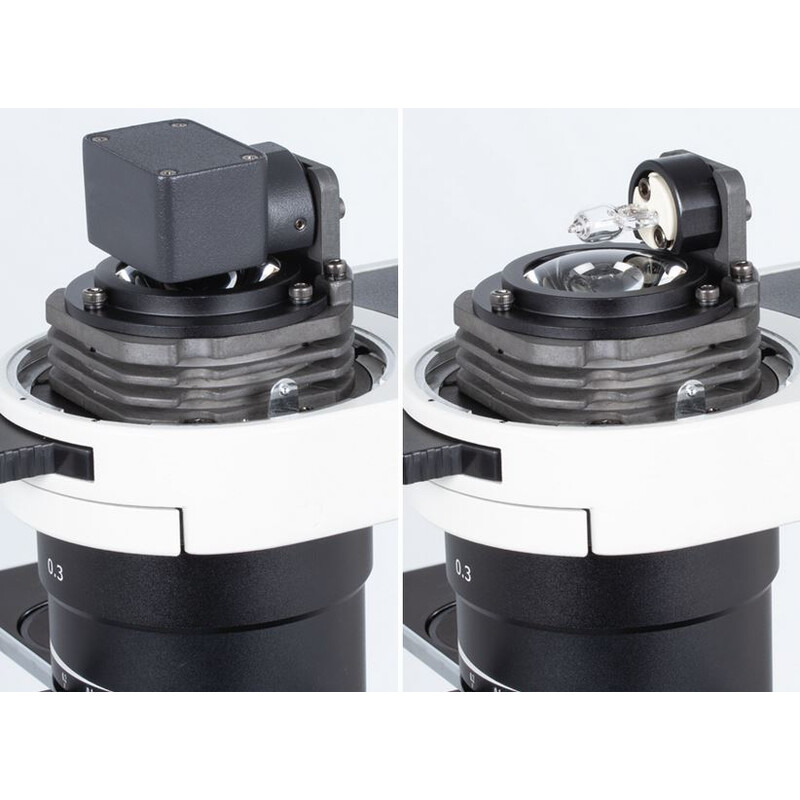

The AE2000 microscopes are Motic’s entry models of inverted microscopes, providing a flexible optical concept to meet best image quality and robust design for a long lifetime under rough lab conditions. The AE2000 is the perfect microscope for routine microbiology in clinical and pharmaceutical laboratories, also offering best options for university teaching. In full accordance with Motic’s CCIS® Infinity System, the LWD Plan Achromatic objectives with an ingenious Phase contrast concept deliver a remarkable image quality. 10X and 20X Phase Contrast objectives are an integral part of all standard packages, while the optional 4X Phase objective is dedicated to fast screening. A 40X Phase objective is available too. The AE2000 stand carries a quadruple nosepiece with a precise click stop of objective positions. Rich illumination power is given by the 30 Watt Halogen light source in a Fixed-Koehler setup, simply interchangeable with 3W LED modules of different color temperatures. The Auto ON/OFF function, based on a built-in IR-sensor, deactivates the microscope in case it is left by the user: no need for a final instrument check when work is finished. The complete AE2000 microscope is manufactured in compliance with European RoHS standards to avoid contact with lead-containing materials. An anti-fungus treatment is applied to all parts of the microscope to protect the system in humid environments.
AE2000 BINOCULAR (without 40X)
- Observation tube: Binocular head, Siedentopf type, 360º swiveling
- Optical system Colour Corrected Infinity Optical System (CCIS®)
- Inclination 45º inclined
- Interpupillary distance 48-75mm
- Diopter adjustment On both eyepieces, +/- 5 diopter

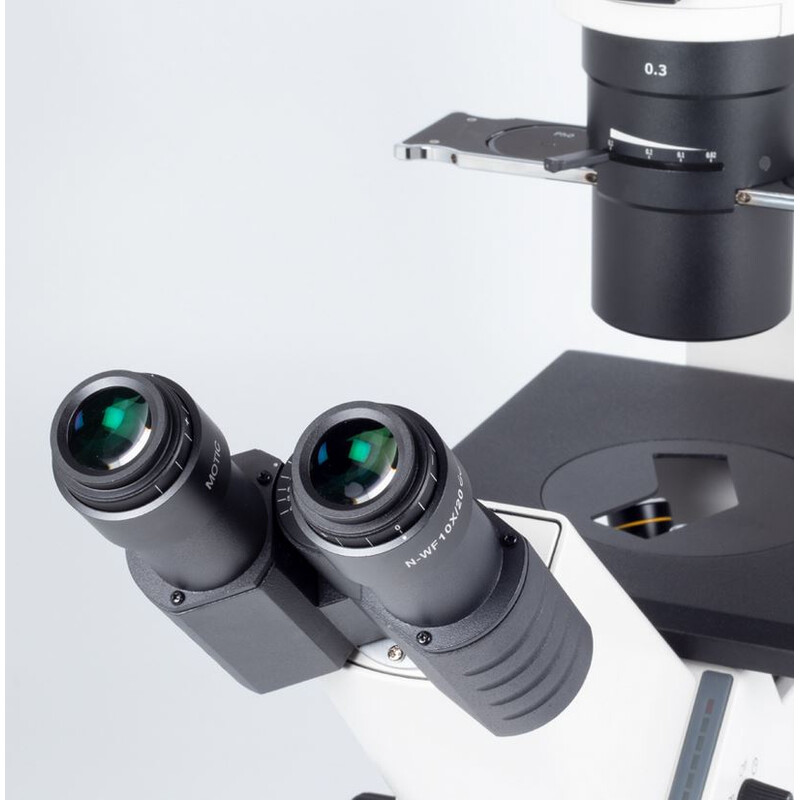

- Eyepieces Widefield N-WF10X/20mm with diopter adjustment
- Nosepiece Left side facing quadruple
- Objective classification CCIS® Plan Achromatic, DIN
- Objectives
- 4X/0.10 (WD 12.6mm)
- PH10X/0.25 (WD 4.1mm)
- LWD PH20X/0.30 (WD 4.7mm)
- Objective mounting thread W 4/5"x1/36" (RMS standard)
- Stand type Inverted
- Stage Plain stage with metal and glass stage inserts
- Stage size 200x239mm

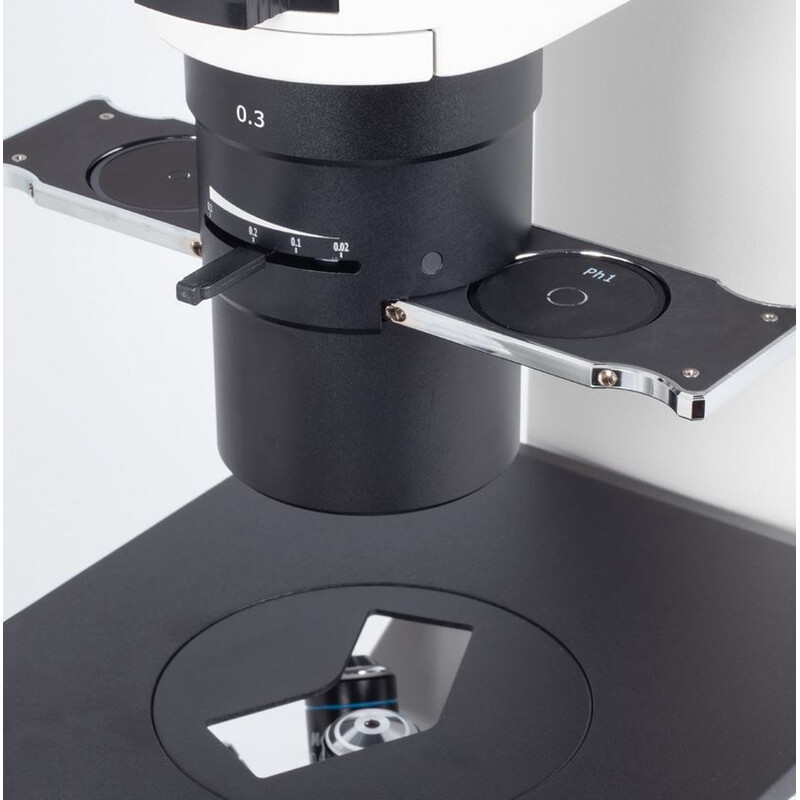

- Condenser ELWD condenser N.A. 0.30 (WD = 72mm) with filter holder
- Diaphragm Iris diaphragm
- Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
- Fine focus precision 2µm
- Focusing stroke 8mm
- Free working distance Working distance without condenser 184mm
- Transmitted illumination Quartz Halogen 6V/30W with intensity control

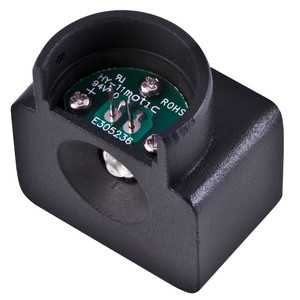

- Illumination interchangeability Illumination interchangeability Quartz Halogen 6V/30W or LED 3W
- Illumination features Auto on/off
- Transformer External
- Power supply 100-240V (CE)
- Accessories included
- Dust cover
- power cord
- blue, green and neutral density filters
- phase ring Ph1
- centering telescope
- centering keys
- Dimensions LxWxH 556x218x496mm Net weight 12.2kg
