Mais sobre a série BA-210...
Infelizmente, a descrição deste produto ainda não está em Portuguê portanto, você encontrará uma descrição em Inglês do produto aqui.

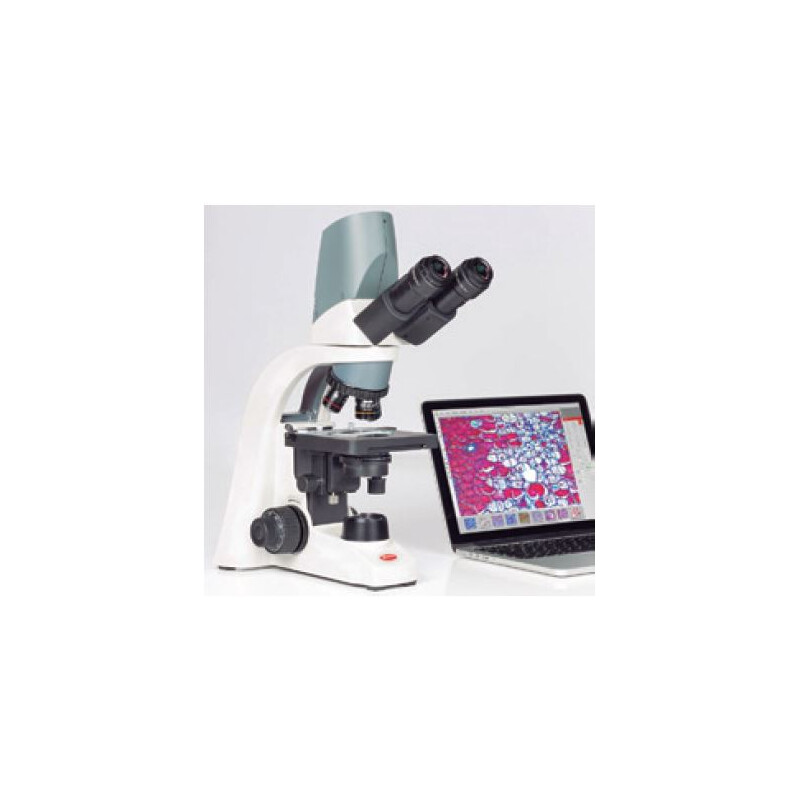

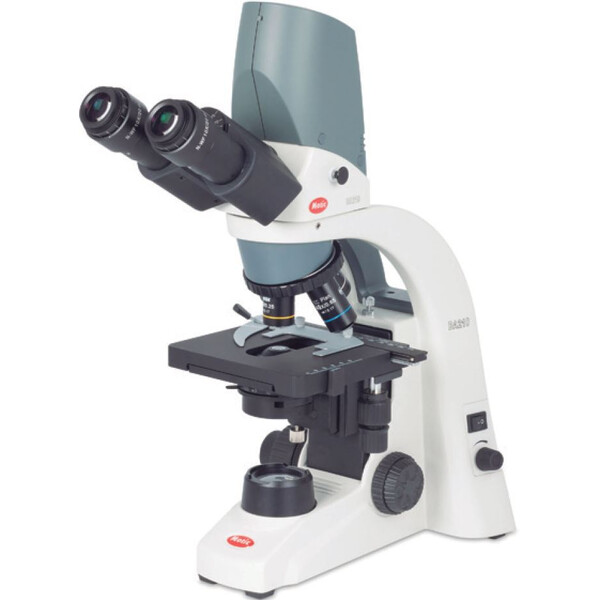

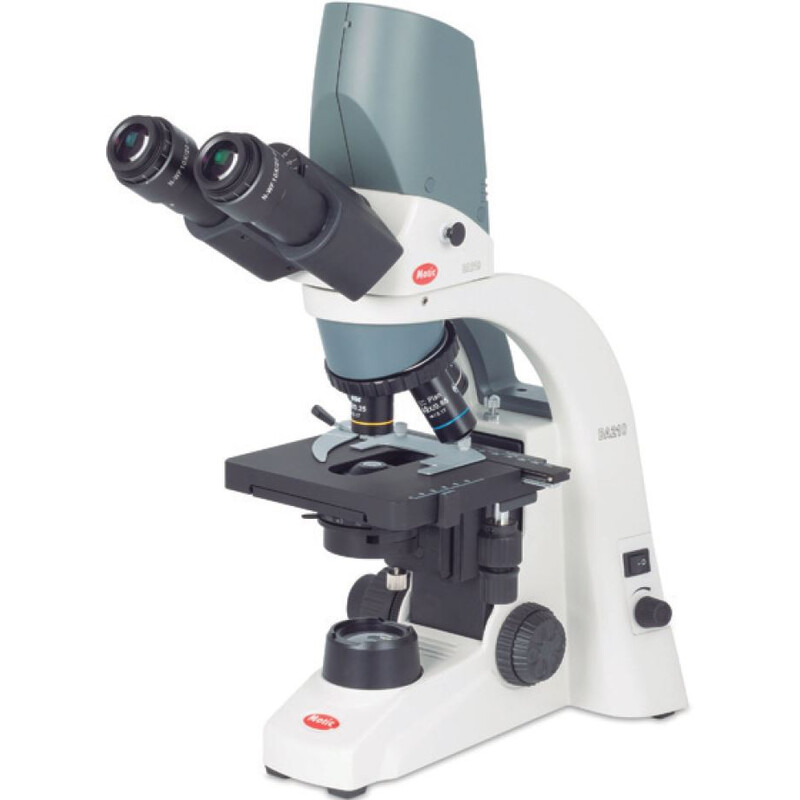

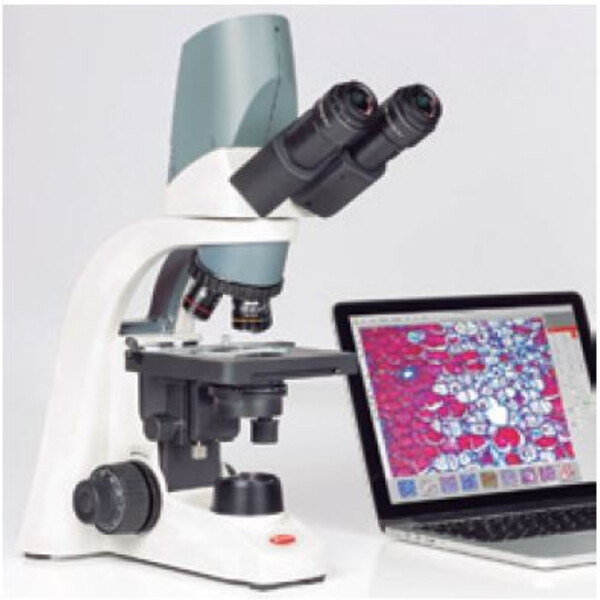

BA210 Digital, 3MP, 1/2", USB2, infinity, EC- plan, achro, 40x-1000x, LED
Optical system Colour Corrected Infinity Optical System (CCIS®)
Observation tube Binocular head, Siedentopf type with Built-in digital camera
Sensor type CMOS
Sensor size 1/2"
Capture resolution 3MP
Live display mode through USB 2048x1536 pixels
Data transfer USB 2.0
Inclination 30º inclined, 360º rotating
- Optical system Colour Corrected Infinity Optical System (CCIS®)
- Observation tube Trinocular head, Siedentopf type
- Inclination 30º inclined, 360º rotating
- Interpupillary distance 55-75mm
- Diopter adjustment On both eyepieces, +/- 5 diopter
- Eyepieces Widefield N-WF10X/20mm with diopter adjustment
- Nosepiece Reversed quadruple
- Objective classification CCIS® EC Plan Achromatic, DIN
- Objective mounting thread W 4/5"x1/36" (RMS standard)
- Stand type Upright
- Stage Mechanical stage with built-in low position rackless coaxial stage control and sample holder
- Stage size 150x150mm
- Travel range X&Y 80x30mm
- Condenser Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders
- Diaphragm Iris diaphragm
- Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
- Fine focus precision 2µm
- Focusing stroke 20mm
- Upper limit stop Upper limit stop preset but adjustable
- Filter holder On top of the illuminator with fixing cap
- Transmitted illumination Quartz halogen 6V/30W with intensity control
- Illumination interchangeability Quartz halogen 6V/30W or LED 3W
- Transformer Internal
- Power supply 100-240V (CE)
- Accessories included
- Dust cover
- power cord
- Hex key
- immersion oil (5ml)
- blue filter
- spare fuse
- cord hanger
- thumb screw
- Dimensions LxWxH 360x220x395mm
- Net weight 7.2kg
