Infelizmente, a descrição deste produto ainda não está em Portuguê portanto, você encontrará uma descrição em Inglês do produto aqui.

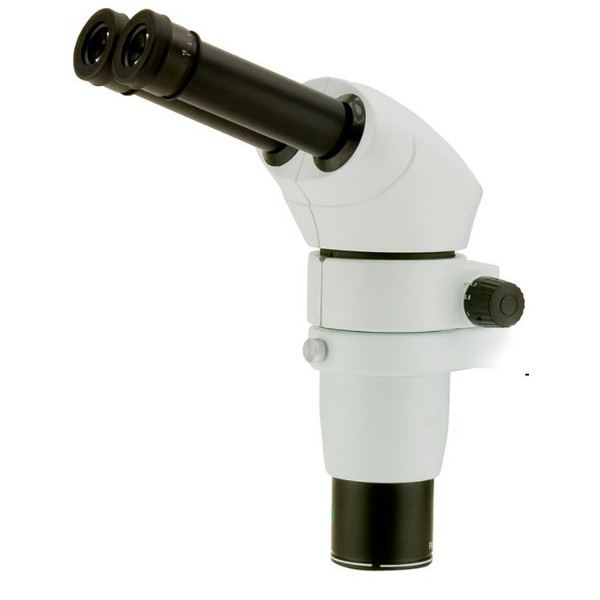

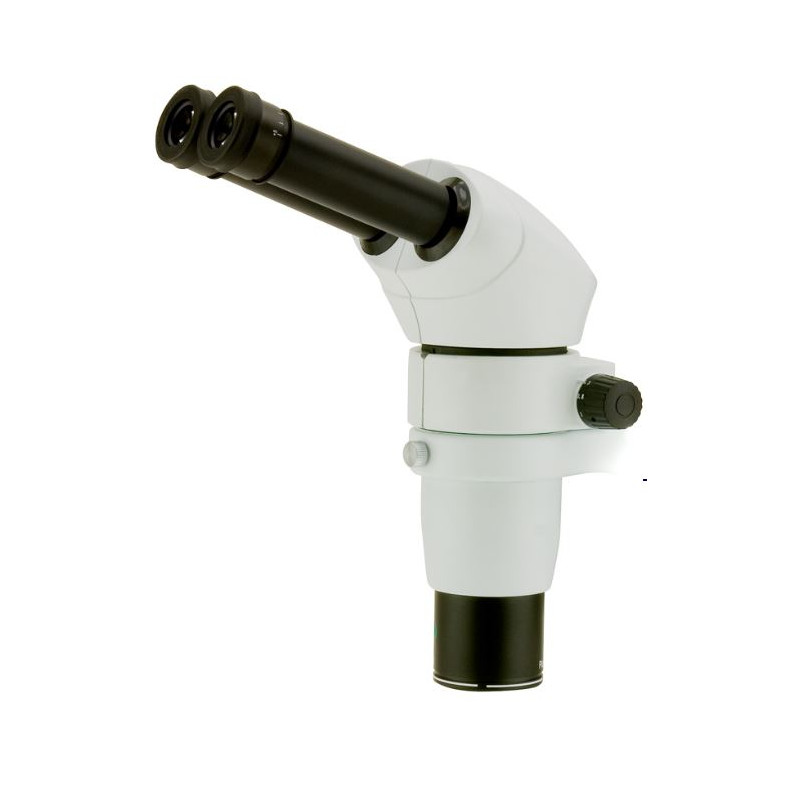

SZP-10 binocular stereozoom head
Illumination:
The microscope has no illumination system, but it can be used with external illuminators (halogen, LED or optical fibers) or with the following models:
ST-151; ST-153; SZ-STL3Led; ST-155; ST-156; SZ-STL8
Focusing:
The microscope can be used with the following models of stand:
ST-150; ST-151; ST-152; ST-153; SZ-STL1H; SZ-STL2H; SZ-STL3Led; SZ-STL3; SZ-STL4; ST-155; ST-156; SZ-STL8
As an alternative it's possible to use focusing systems with a 76 mm diameter head holder.
Head:
- Binnocular 360° rotating and 30° inclined.
- Adjustment +- 5 diopters on both eyepieces.
- Interpupillary adjustment 52-75 mm.
Eyepieces:
- Widefield eyepieces WF10x/22 with field number 22.
- Parfocal achromatic objective 1x
- Working distance: 80 mm
- Zoom range: 0,8x - 8x (zoom factor: 10:1).
- Maximum magnification in standard configuration: 80x (can be increased to 320x).
Accessories:
Instruction manual and dust cover included.
