The Optika B-350 series
The brand new series B-350 strikes the right balance between price and quality. Thanks to the variety of its microscopes, it can be successfully used both in advanced teaching situations and in laboratories. Professional users will certainly value the technical characteristics of the B-350 series that make its high quality microscopes resistant and reliable. The series B-350 includes 8 models featuring achromatic, planachromatic and infinity corrected plan objectives.
Optical system & objectives
The series B-350 microscopes are equipped, depending on the various models, with two different types of optical system: anti-fungus 160 mm standard and infinity corrected system (IOS). In both cases the field diameter of the system is 20 mm.
Microscope stand
Modern and ergonomic, this stand is made from die-cast aluminium. Macro and micrometric focusing (graduated, 0.002mm) with coaxial controls. Adjustable focusing tension and upper sliding stop.
Heads
They are available in binocular or trinocular version suitable for photography/ video applications. Both heads are equipped with interpupillary distance control (55-75 mm) as well as with dioptric compensation. WF10x/20mm eyepieces also suitable for people wearing glasses. All heads are 360° rotatable and 30° inclined.
Illuminator
The illuminating system consists of X-LED illuminator. The brightness control takes place through a rheostat located on the right-hand side of the microscope base.
Condenser
Included in the package is an Abbe type condenser. It can be centred through a double-control system and adjusted in height through a rack-and-pinion mechanism by means of control knobs located on both sides of the microscope stand. The condenser is also fitted with an iris diaphragm whose aperture can be adjusted with graduated reference scale.

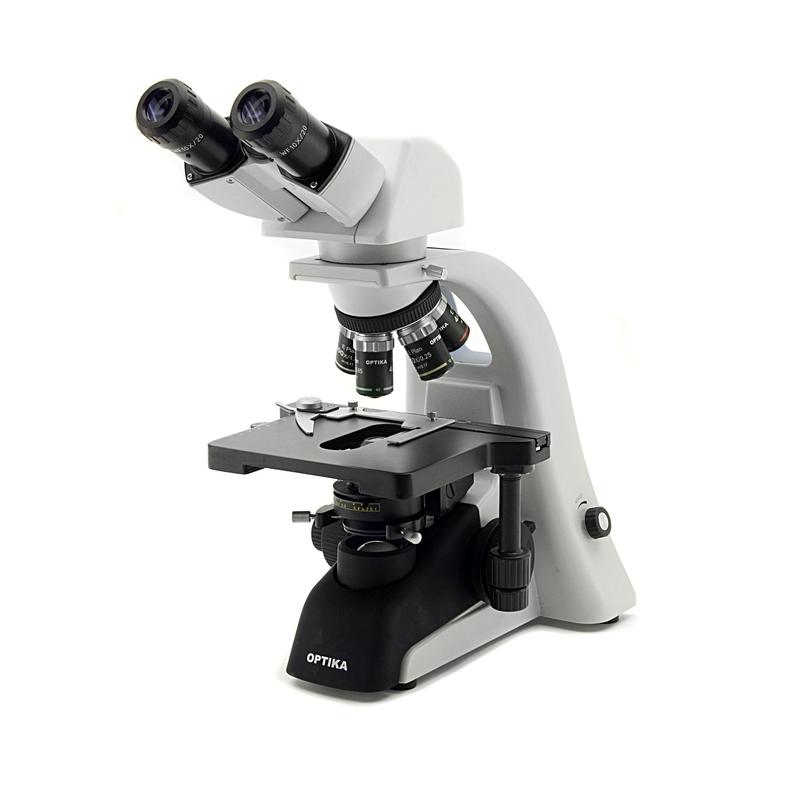

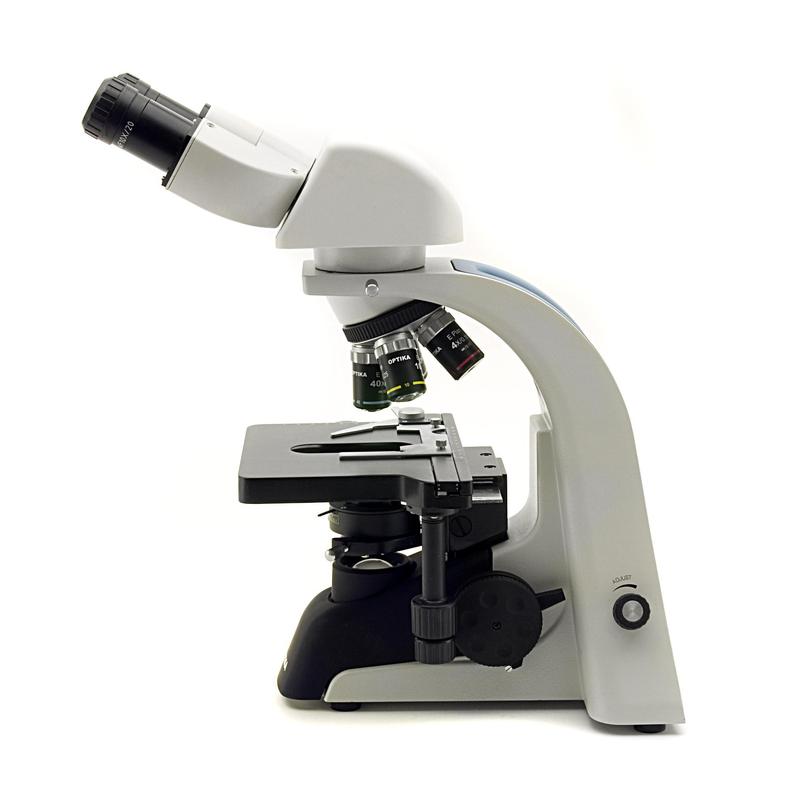

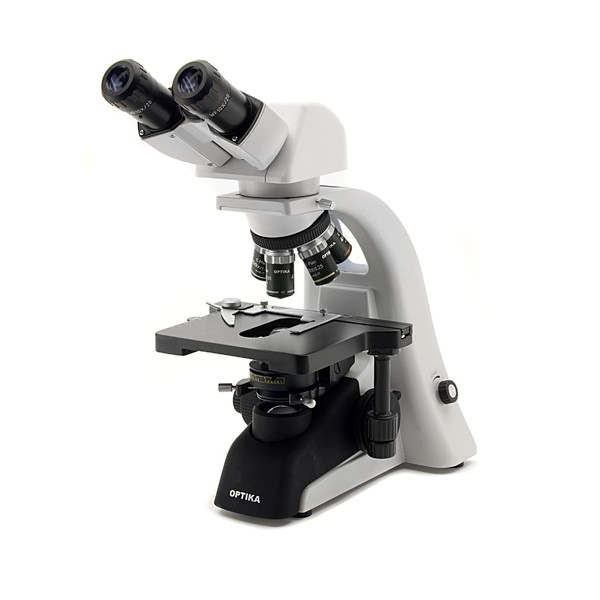

What makes the B-352PLi special:
Binocular head; 4x, 10x 40x 100x plan achromatic IOS objectives with a quintuple nosepiece revolver.
